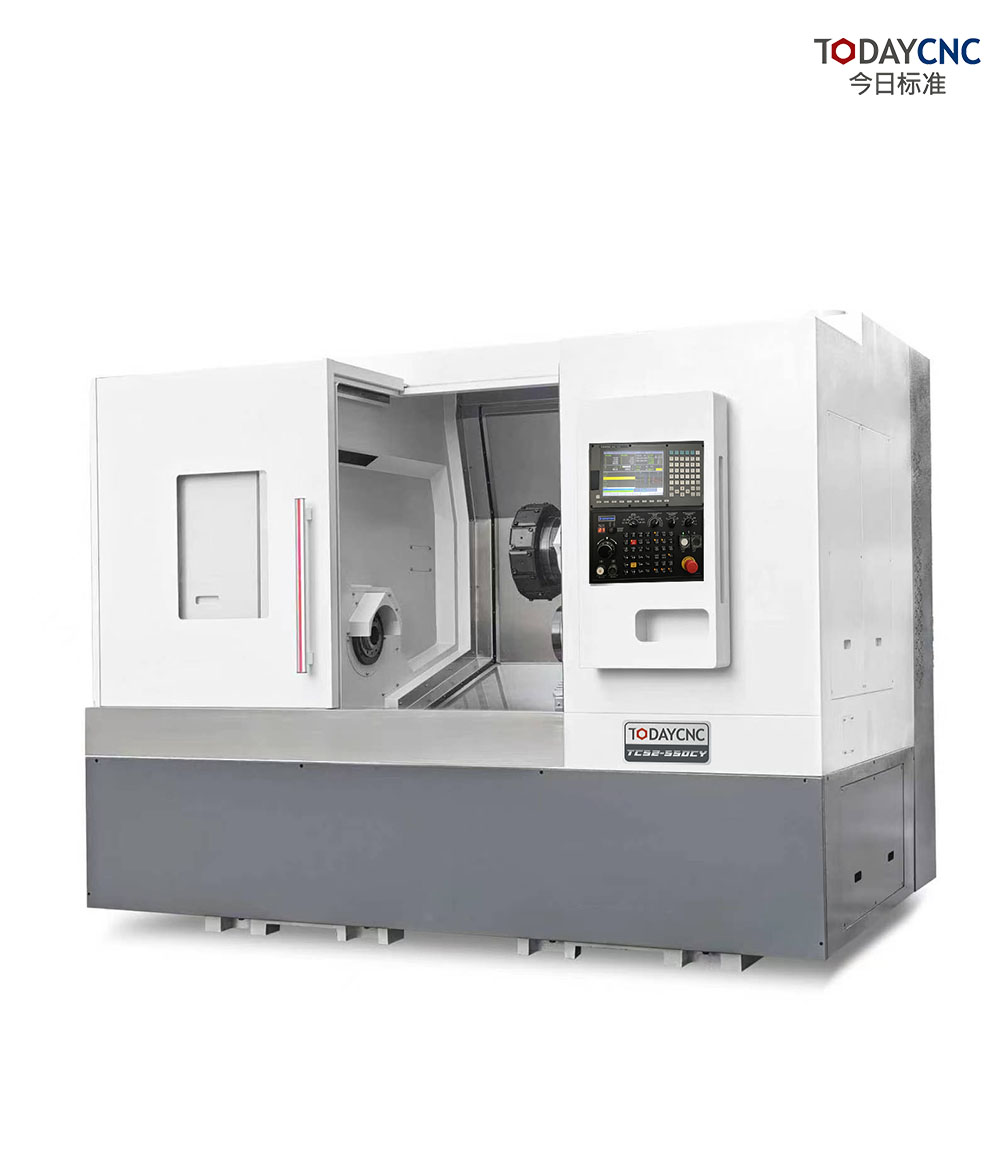

插补Y动力刀塔尾顶车铣复合

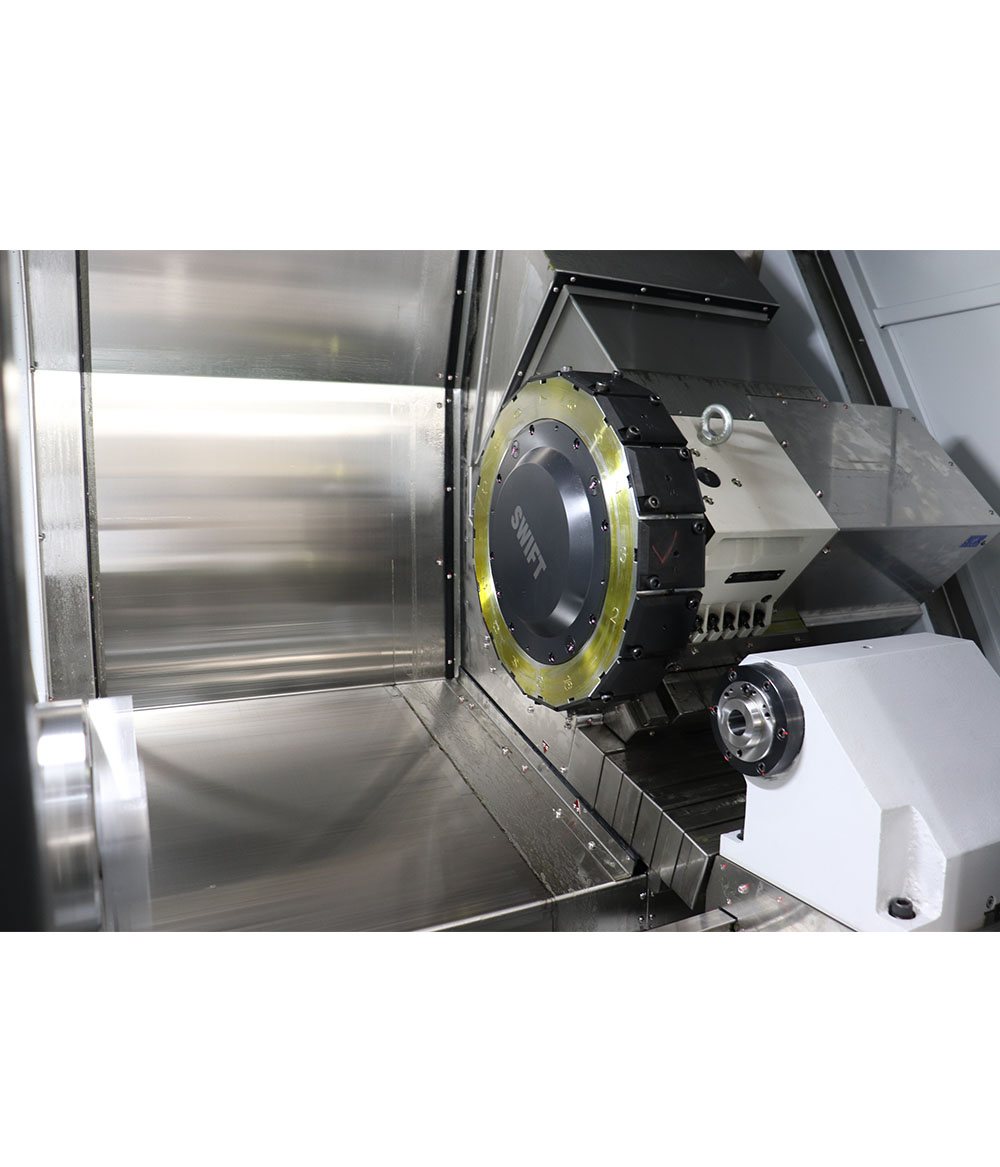

1、16工位刀塔动力响应，一次装夹
2、 15°阶梯式一体床身，高轨提高支撑刚性，低轨优化运动部件的布局，减少切削震动
3、30°床鞍+高低轨，重心更低，四导轨布局抗振
4、箱体与轴承座一体铸造成型
| 型号 Model No. | TC52-550CY | |||
|
系统
NC System
|
SYNTEC 220 PLUS | |||
|
极限参数
Parameters
|
机床最大回转直径
Max. swing diameter (over bed)
|
720mm | ||
|
卡盘端面至刀盘端面最大距离
Max. distance from chuck face to turret face
|
600mm | |||
|
卡盘端面至刀盘端面最小距离
Min. distance from chuck face to turret face
|
-20mm | |||
|
卡盘端面至顶尖最大距离
Max. distance from chuck face to tailstock center
|
630mm | |||
|
刀盘中心到主轴中心最大距离
Max. distance from turret center to main spindle center
|
440mm | |||
|
刀盘最大回转直径
Max. swing diameter (over turret)
|
720mm | |||
|
过床鞍回转直径
Max. swing diameter (Over Saddle)
|
370mm | |||
|
尾座最大回转直径
Max. swing diameter (over tailstock)
|
370mm | |||
|
行程
Travel
|
X轴最大行程
Max. X-axis travel
|
270mm(-103mm/+167mm） | ||
|
Y轴最大行程
Max. Y-axis travel
|
116mm（+58 至-58mm） | |||
|
Z轴最大行程
Max. Z-axis travel
|
620mm | |||
|
主轴
Main Spindle
|
主轴鼻端形式
Main Spindle nose type
|
A2-6 | ||
|
主轴通孔
Main spindle through hole diameter
|
ø62mm | |||
|
主轴最高转数
Max. Main spindle rev speed
|
0-4500r/min | |||
|
主轴中心至地面距离
Distance from main spindle center to floor
|
1075mm | |||
|
回转尾顶
Rotating tailstock center
|
固定顶尖型号
Fixed tailstock center Model
|
莫氏4号
Morse taper 4
|
||
|
液压尾座行程
Hydraulic tailstock travel
|
420mm | |||
|
伺服尾座行程
Servo tailstock travel
|
500mm | |||
|
套筒直径
Sleeve diameter
|
95mm | |||
|
快速移动
Rapid travel
|
X轴快速定位
X-axis rapid travel
|
≤ 24m/min | ||
|
Y轴快速定位
Y-axis rapid travel
|
≤ 10m/min | |||
|
Z轴快速定位
Z-axis rapid travel
|
≤ 24m/min | |||
|
尾座快速定位
Tailstock rapid travel
|
≤ 10m/min | |||
|
动力刀塔
Power turret
|
刀位数
QTY of tool stations
|
BMT55-12位
BMT55-12 stations
|
BMT55-16位
BMT55-16 stations
|
BMT45-15位
BMT45-15 stations
|
|
刀方尺寸
Tool shank size
|
25×25mm | 25×25mm | 25×25mm | |
|
镗杆直径
Boring bar diameter
|
ø32/40mm | ø32/40mm | ø32/40mm | |
|
刀塔中心高
Turret center height
|
100mm | 100mm | 100mm | |
|
刀盘对边距离
Turret face width (across flats)
|
330mm | 450mm | 364mm | |
|
90°动力刀座过主轴中心
90° live tool holder passing through spindle center
|
60mm | 120mm | 77mm | |
